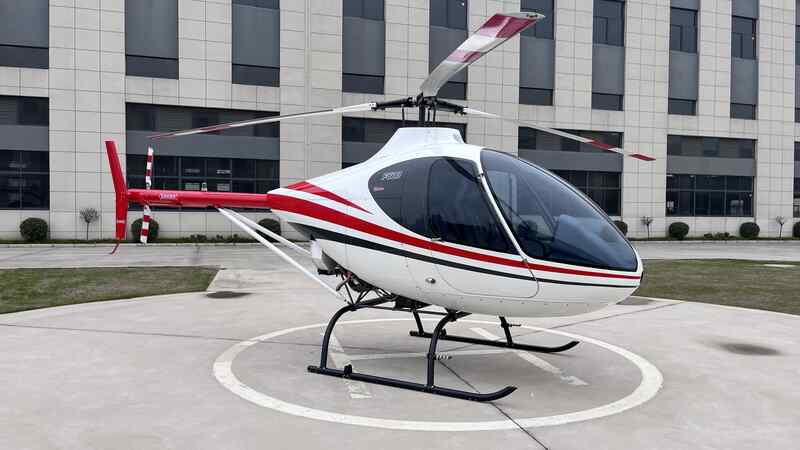

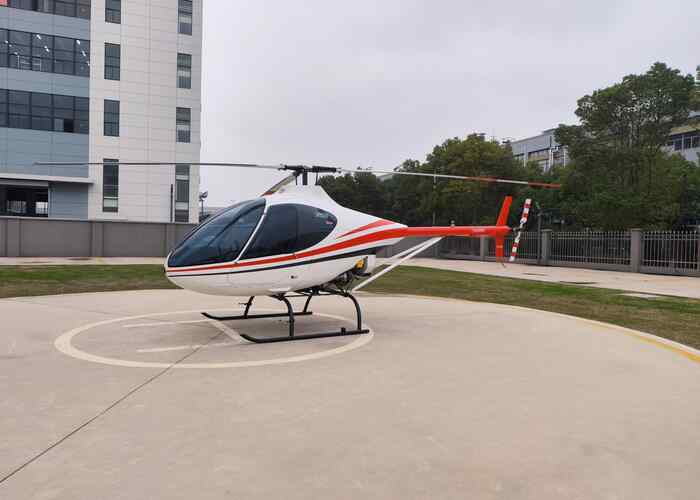

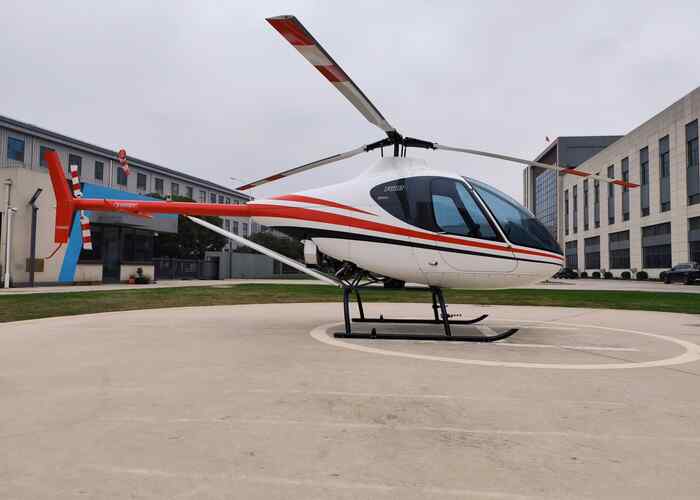

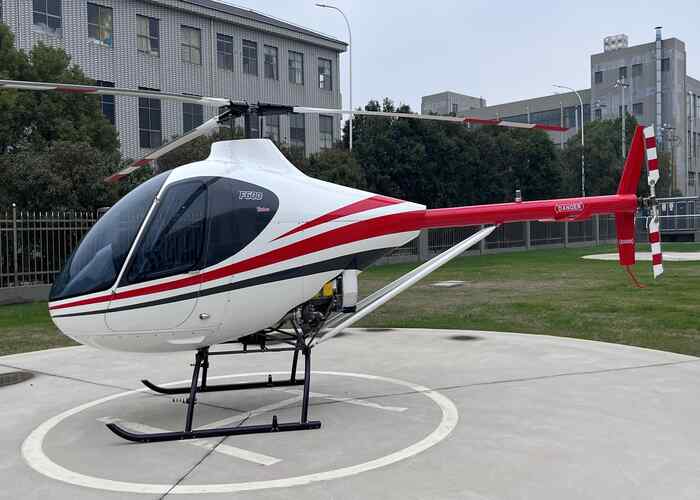

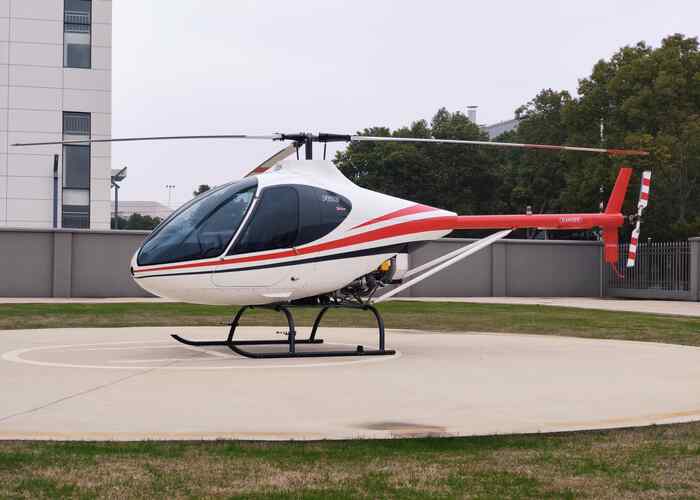

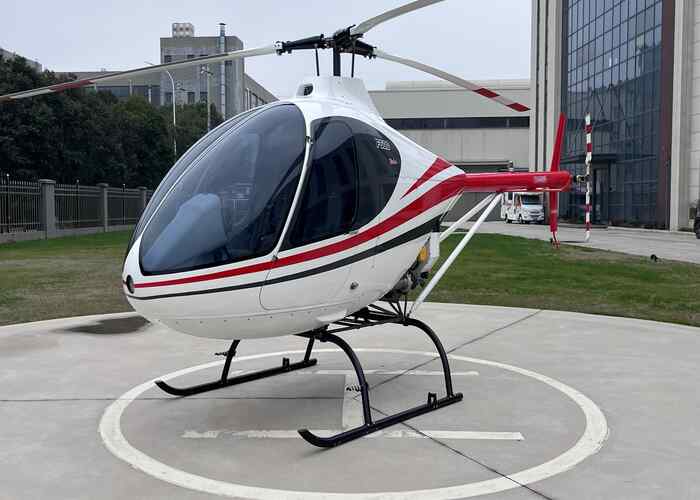

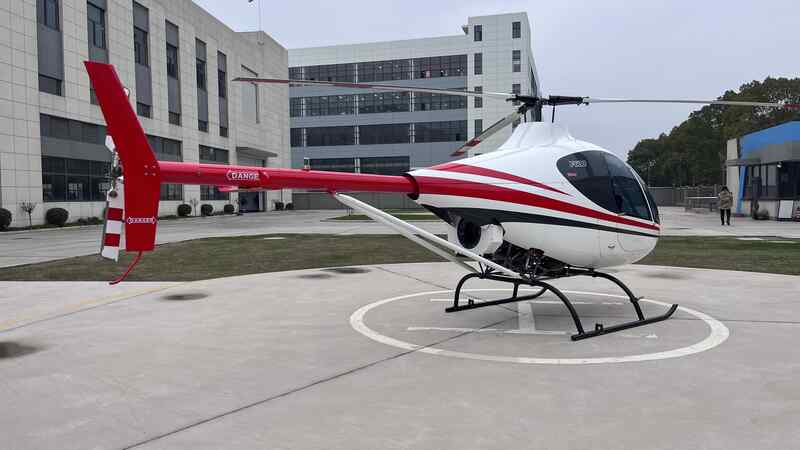

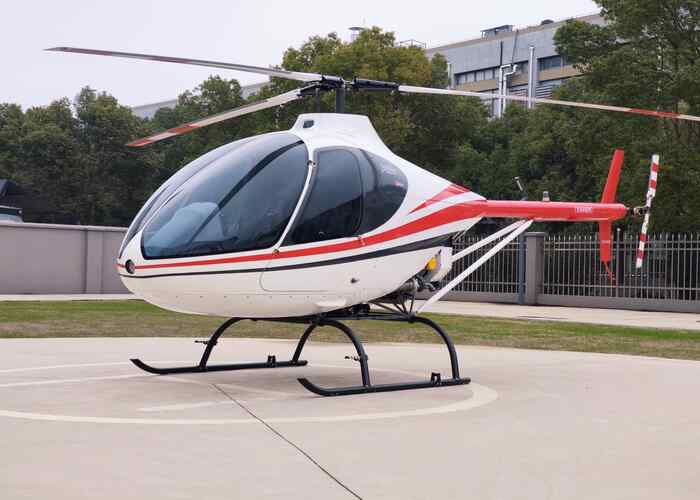

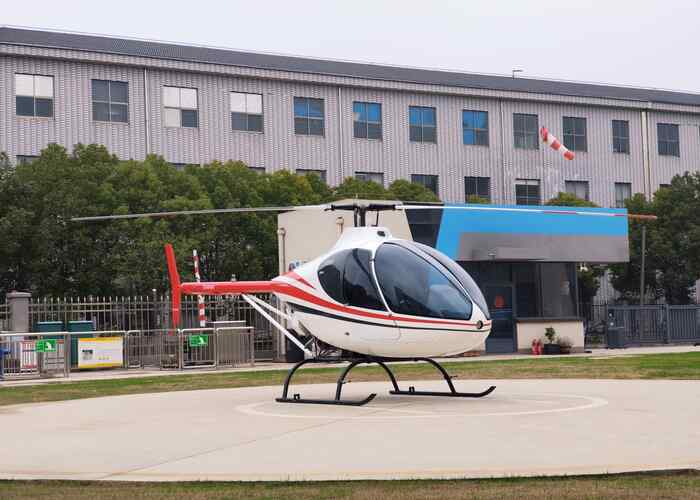

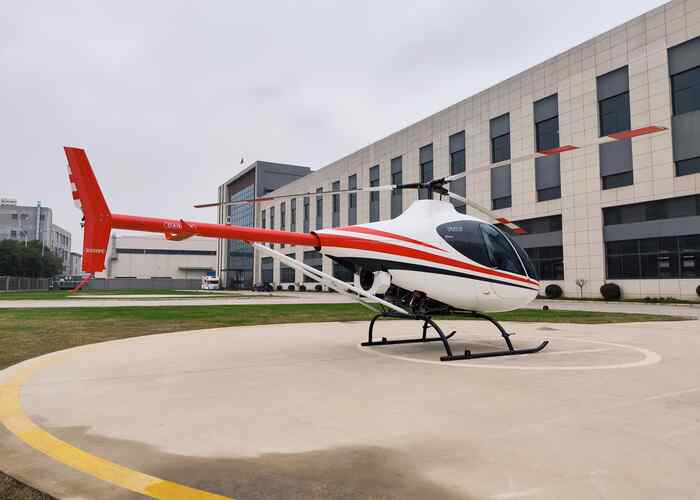

F600 kit helicopter

🛩️ F600 Helicopter Technical Specification Sheet Overview

This table presents the core technical parameters of Changzhou Zhonglian Aviation’s F600 experimental helicopter, with two instrument configuration options:

✈️ Model Variants

Model	Instrument Type
F600	Garmin-style digital instrument panel
F600	Japanese mechanical instrument panel

All performance specifications are identical between the two variants; only the cockpit instrumentation differs.

⚙️ Key Technical Specifications

Parameter	Value	Details
Engine Model	FB160HT	4-cylinder, air-cooled, dual ignition system
Max. Airspeed	190 km/h	Maximum flight speed limit
Max. Power	175 HP	Engine output power
Max. Cruising Speed	160 km/h	Optimal speed for efficient flight
Max. Range	360 km	Maximum distance on a full tank
Endurance	2 hours	Continuous flight time with full fuel
Fuel Tank Capacity	72 L	Compatible with 98# gasoline or AVGAS 100LL aviation fuel
Empty Weight	395 kg	Weight of the aircraft without fuel or payload
Max. Takeoff Weight	650 kg	Total allowable weight including fuel, payload, and crew
Payload	265 kg	Maximum weight for crew and cargo
Seats	2	Two-seat light helicopter configuration
Total Length	8.22 m	Overall length of the aircraft
Total Height	2.39 m	Overall height of the aircraft
Main Rotor Diameter	6.95 m	Diameter of the main lifting rotor

💡 Application Scenarios

The F600 is an experimental category helicopter, ideal for:

Private flight enthusiasts and recreational flying
Flight training and pilot familiarization
Light industrial tasks (aerial photography, short-distance commuting)
Agricultural plant protection, geological survey, and other light-duty operations

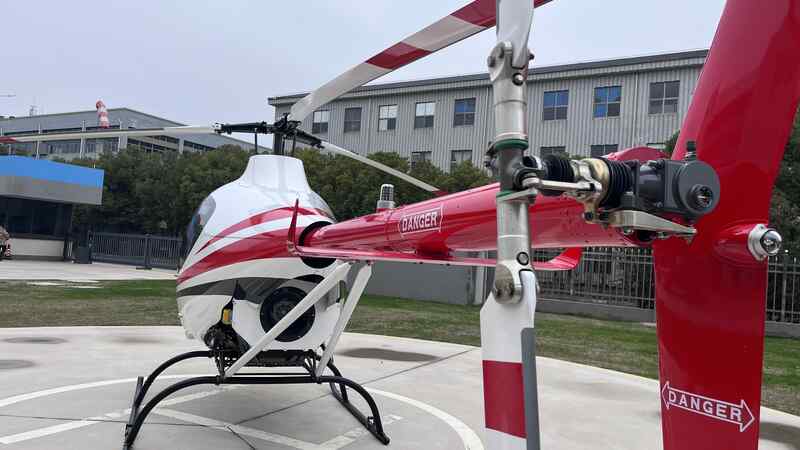

F600 kit helicopter
