Flyben Engines Parameter Comparison of 4 Cylinder, 6 Cylinder, and 8 Cylinder Variants
- Flyben Engines: Parameter Comparison of 4 - Cylinder, 6 - Cylinder, and 8 - Cylinder Variants Flyben offers 4 - cylinder, 6 - cylinder, and 8 - cylinder engines. The 4 - cylinder is compact, fuel - efficient, suitable for small - scale applications. The 6 - cylinder (like FB200T) balances power and size, with moderate displacement and torque. The 8 - cylinder packs more power, higher displacement and torque, ideal for heavy - duty needs. Displacement, power output, and torque increase with more cylinders, while fuel consumption and size also rise, catering to diverse aviation and industrial demands.
Description
Flyben Engines Parameter Comparison of 4 Cylinder 6 Cylinder and 8 Cylinder Variants
Jiangsu Flyben Engine Co.,Ltd
FLYBEN FB160T Engine Performance Parameters

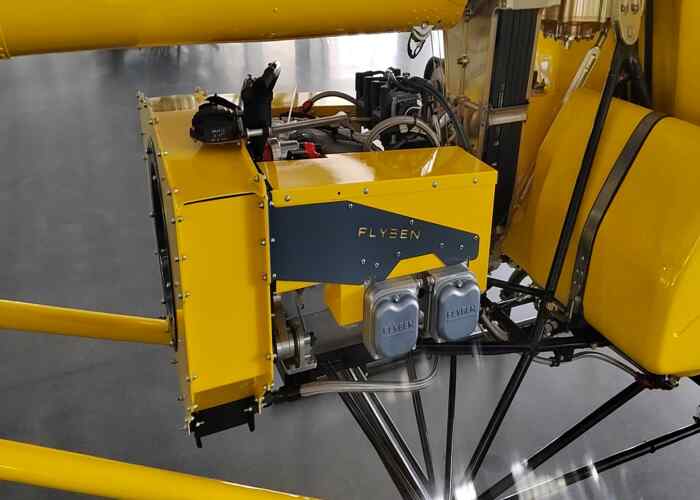

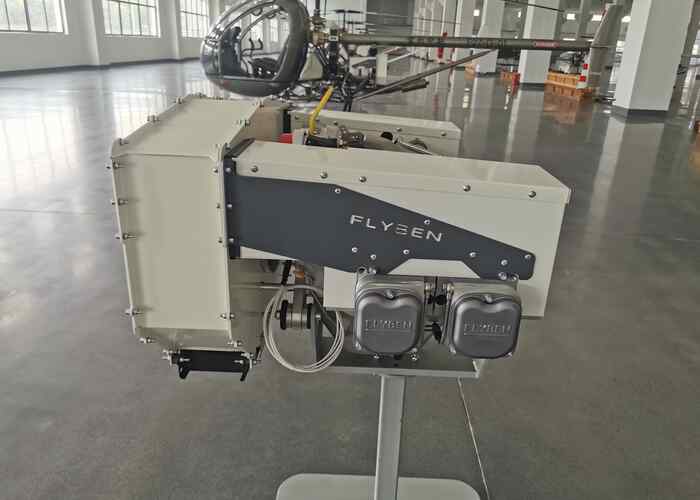

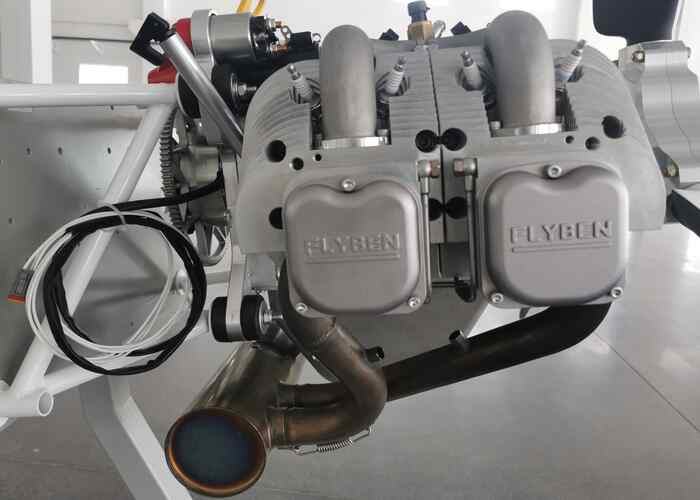

· Four - cylinder , four - stroke, horizontally opposed engine
· Full - engine air cooling
· Turbocharging system
· Dual - electronic spark ignition system
· Electronic fuel injection
· Wet forced lubrication oil sump
· Integrated alternator
· Electric start
· Dual - electronic fuel pump
Specification | Parameter |
Length X | 520mm |
Width Y | 739mm |
Height Z | 490mm |
Displacement | 3520cc |
Bore | 105.7mm |
Stroke | 100.2mm |
Compression Ratio | 8.1: 1 |
Max Altitude Limit | 6500m (Alt.) |
Rotation Direction | Clockwise (viewed from the rear of the engine) |
Max Torque | 390Nm (145hp) / 3000rpm |
Max Power | 170hp (370Nm) / 3300rpm |
Alternator | 30A (13.7V) |
Oil Capacity | 3.3L (MIN: 2.8L - MAX: 3.5L) |
Fuel | 98# Gasoline / 100LL Aviation Gasoline |
Engine Dry Weight | 81.2KG |
Total Operating Weight | 94.5KG |
Jiangsu Flyben Engine Co., Ltd
FLYBEN
FB200T Engine Performance Parameters

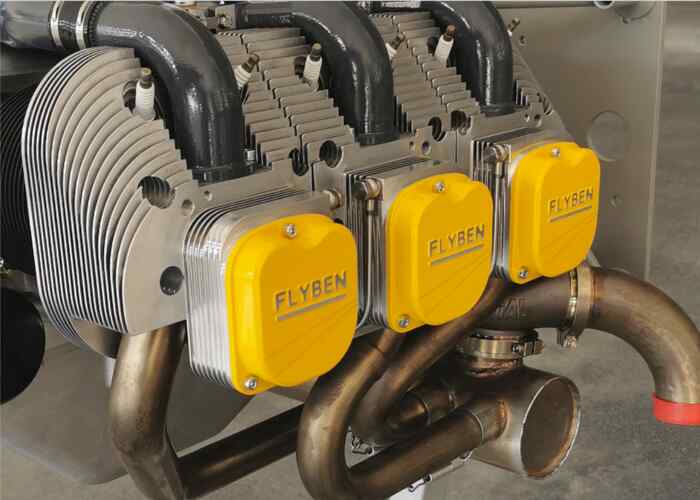

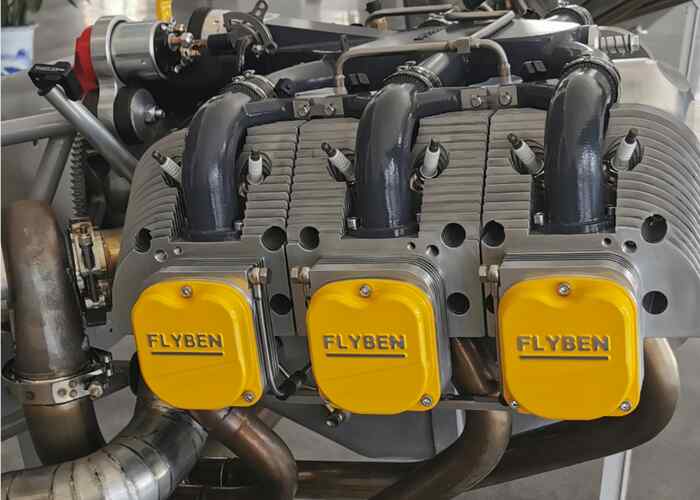

· Six - cylinder four - stroke horizontally opposed engine
· Full - engine air cooling
· Turbocharging system
· Dual - electronic spark ignition system
· Electronically controlled fuel injection
· Wet - type forced lubrication oil sump
· Integrated alternating - current generator
· Electric start
· Dual - electronic fuel pump
Parameter | Value |
Length X | 750mm |
Width Y | 739mm |
Height Z | 550mm |
Displacement | 5295cc |
Bore | 105.7mm |
Stroke | 100.2mm |
Compression Ratio | 8.1: 1 |
Maximum Service Ceiling (Alt.) | 6500m |
Rotation Direction | Clockwise (viewed from the rear of the engine) |
Maximum Torque | 590Nm (215hp) / 2650rpm |
Maximum Power | 250hp (570Nm) / 3000rpm |
Generator | 50A (13.7V) |
Engine Oil Capacity | 5L (MIN: 4.5L - MAX: 5.5L) |
Fuel | 98# Gasoline / 100LL Aviation Gasoline |
Engine Dry Weight | 107.9KG |
Total Operating Weight | 125.6KG |
Jiangsu Flyben Engine Co., Ltd
FLYBEN
Performance Parameters of FB300T Engine

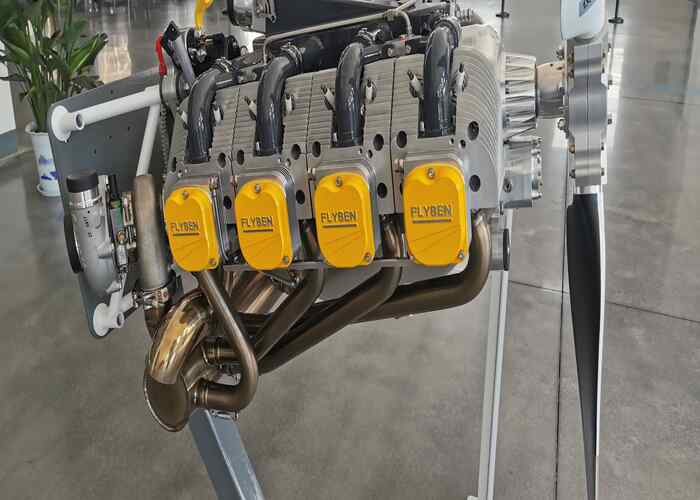

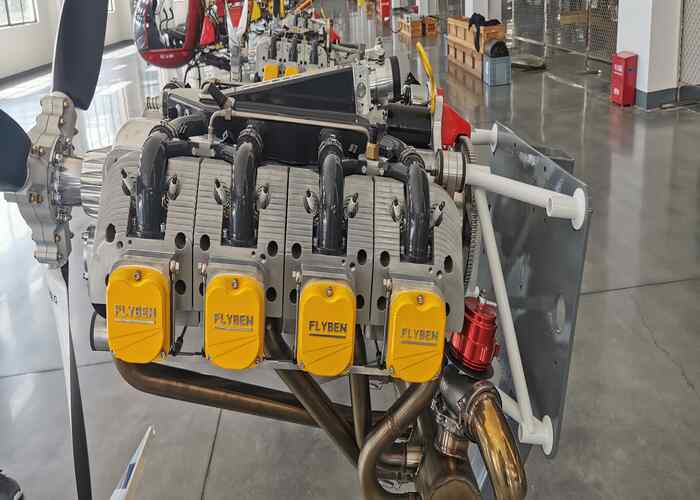

· 8 - cylinder, four - stroke horizontally opposed engine
· Full - engine air - cooling
· Turbocharging system
· Dual - electronic spark ignition system
· Electronic control fuel injection
· Wet - type forced lubrication oil pan
· Integrated alternator
· Electric start
· Dual - electronic fuel pump
Parameter | Value |
Length X | 939mm |
Width Y | 739mm |
Height Z | 550mm |
Displacement | 7055cc |
Cylinder Bore | 105.7mm |
Stroke | 100.2mm |
Compression Ratio | 8.1:1 |
Maximum Service Ceiling (Alt.) | 6500m |
Rotation Direction | Clockwise (viewed from the rear of the engine) |
Maximum Torque | 780Nm (300hp) / 2650rpm |
Maximum Power | 350hp (760Nm) / 3300rpm |
Generator | 50A (13.7V) |
Engine Oil Capacity | 6.5L (MIN: 6L - MAX: 7L) |
Fuel | 98# Gasoline / 100LL Aviation Gasoline |
Dry Weight of Engine | 153.6KG |
Full - operation Weight | 172.5KG |
