Description

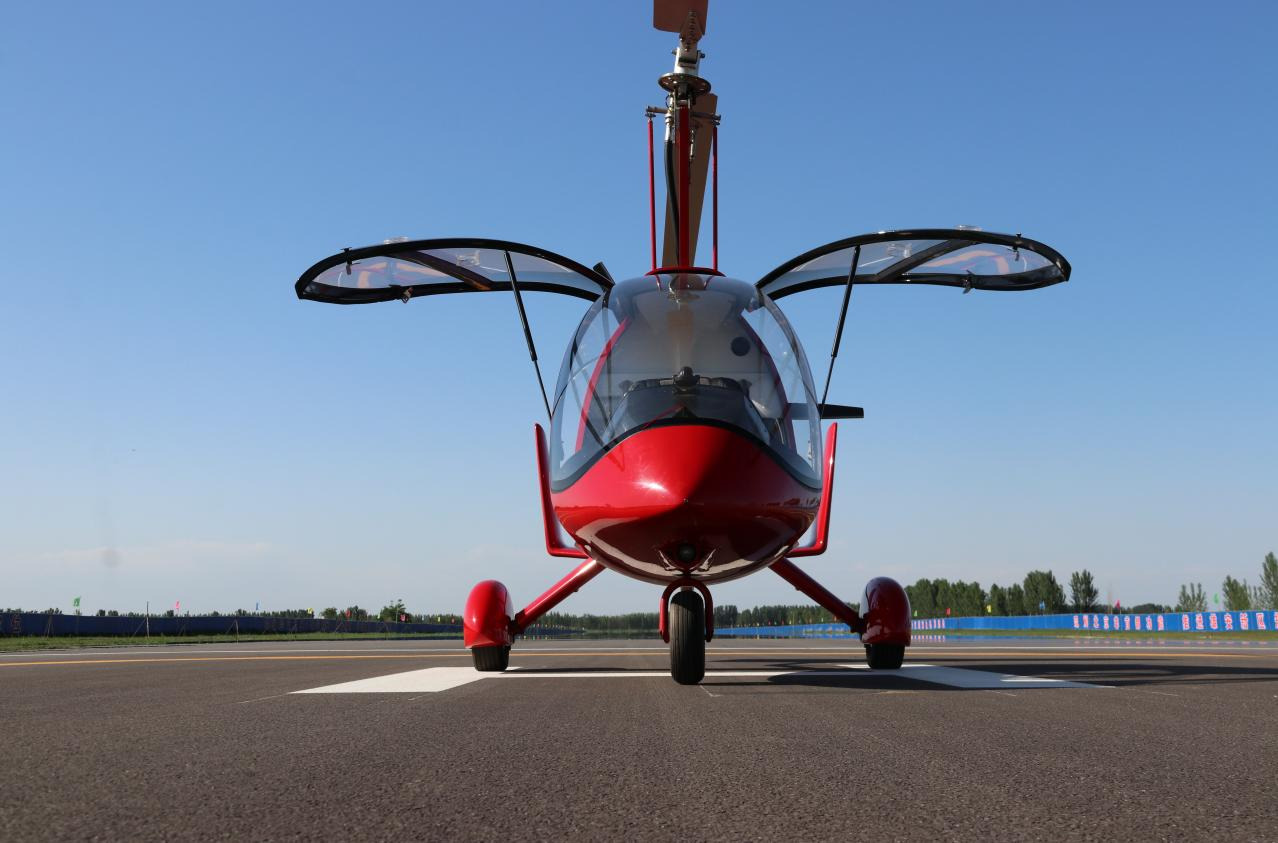

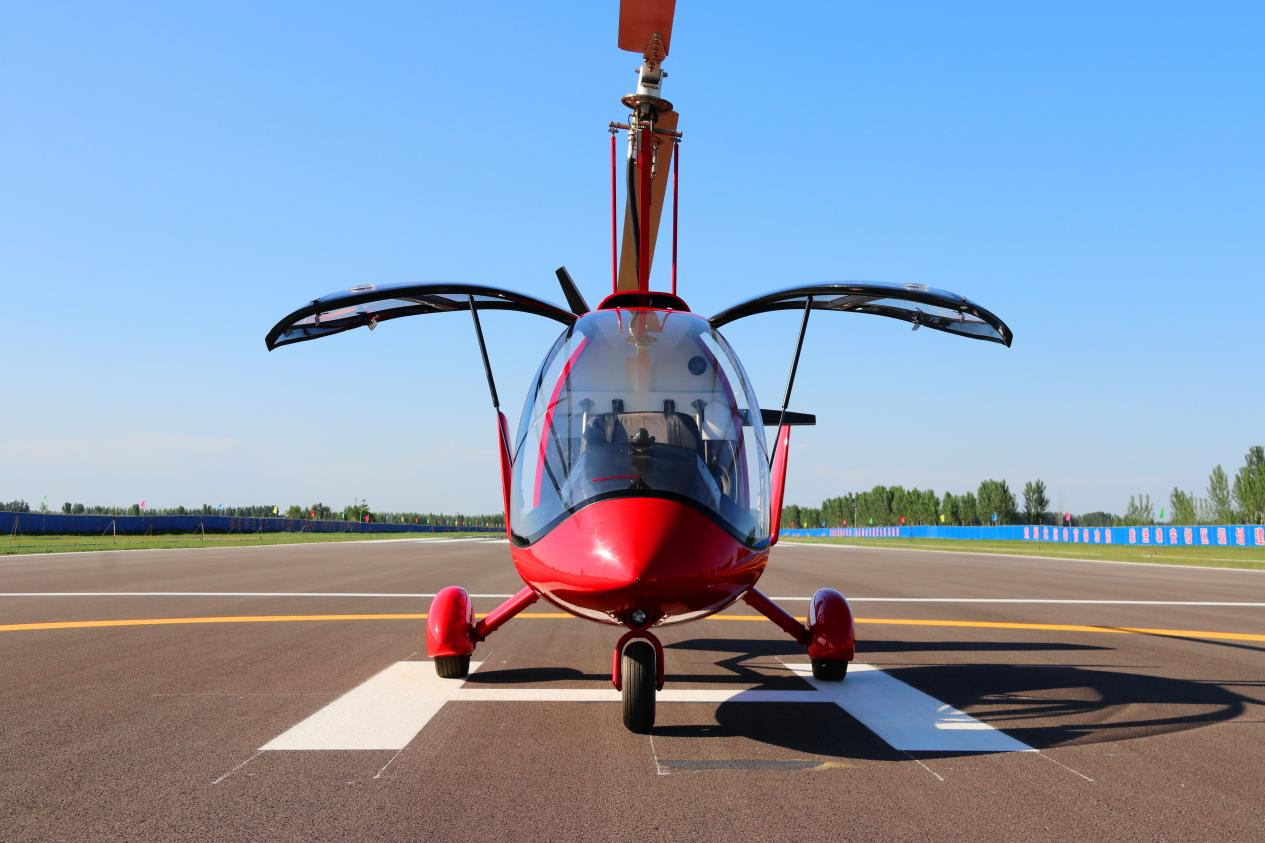

     The Tongyu C-100 autogyro is a light sport aircraft developed and manufactured by Hebei Tenchy Aviation Equipment Technology Development Co., Ltd. It features a streamlined fully enclosed cockpit, European-style detachable cabin doors, a tricycle landing gear, a rear propeller, and a passive rotor design layout. The entire aircraft structure is mainly composed of rotor blades with a diameter of 8.6 meters, ROTAX914UL piston engine, T300 carbon fiber composite materials, and European standard 25CD4 steel. The optimized combination design of metal and non-metal structures greatly improves key performance indicators such as the aircraft's strength, lightweight, and safety.

    This model uses conventional No. 95 and No. 98 gasoline as fuel. It has the characteristics of safety and stability, good wind resistance, simple operation and maintenance, low operating costs, and strong adaptability to flight sites under various climatic conditions. It is an aircraft that can deeply integrate into the development of China's low-altitude economy.

    The Tongyu series autogyros are the "sports cars in the sky" among light aircraft. They have successively obtained airworthiness certifications in France, Germany, Canada, Nepal, and China. The Tongyu C-100 is the first full-cabin autogyro in China to apply for and obtain the light sport aircraft certification from the Civil Aviation Administration of China. This model also fully meets the ASTM light sport aircraft standards in the United States. The product has successively obtained airworthiness certificates from countries such as France, Germany, Canada, Nepal, and China, and has obtained the first aircraft type certificate issued by the North China Regional Administration of the Civil Aviation Administration of China. The product has been sold to more than 40 countries and regions around the world and has been well received by consumers. Friends from all walks of life are welcome to choose autogyros and experience the beauty of flying freely in the sky.

Application Fields

· Air Traffic

· Experience Flight with Instructor

· Flight Training

· Emergency Rescue

· Aerial Photography and Survey

· Science Popularization and Research Study

Tongyu C-100 Gyrocraft Specifications

· Number of seats: 2

· length (including rotors): 8.6 m

· height (including rotors): 2.72 m

· Length of fuselage: 4.95 m

· Maximum width of fuselage: 1.9 m

· Take-off roll: 80 - 120 m

· Landing distance: 0 - 30 m

· Maximum crosswind speed: 10.5m/s

· Maximum Headwind Speed: 20m/s

· Flight height: 3200m

· Maximum speed never exceed: 180 km/h

· Duration of flight: 5.5 hours

· Temperature range: -20°C to +35 / 40°C

· Engine type: ROTAX 914UL

· Rated engine power: 115CV/hp

· Empty weight: 309kg

· Maximum take-off weight: 560 kg

· Speed for maximum endurance: 100km/h

· Cruise speed: 130 km/h

· Fuel capacity: 70L

· Fuel type: Lead/ethanol-free motor gasoline of RON95# or above

Maximum weight that the front/rear seats can withstand: 110kg
Minimum weight that the front seat can withstand: 60kg

Tongyu C-100 Gyrocraft Performance

· Empty weight: 309kg

· Useful load: 251kg

· Maximum take-off weight: 560kg

· Maximum flight speed: 180km/h

· Practical ceiling: 3200m

· Maximum crosswind speed: 10.5m/s

· Maximum headwind speed: 20m/s

· Cruise speed: 130km/h

· Endurance speed: 100km/h

· Take-off roll distance: 80 - 120m

· Landing roll distance: 0 - 30m

· Maximum range: 500 - 600km

· Endurance: 4.5 - 5.5h

· Fuel tank capacity: 70L

· Maximum weight allowed for front/rear seats: 110kg

· Minimum weight allowed for front seat: 60kg

· Fuselage dimensions: L 4.95m / W 1.9m / H 2.72m

Aircraft Features
Safe and stable, with good wind resistance and flexibility. It is easy to operate, has a wide field of vision and high comfort. The external fuselage is streamlined, making transportation convenient. The purchase and maintenance costs are low.

Product Features
European-style detachable doors, detachable rear propeller blades, long service life of the airframe. The cockpit glass is suitable for multiple countries and regions. Advanced technology and equipment accessories.
